Description
Every system needs a quality power supply to give of its best. PowerLine is a family of compact Power Distribution Units (PDU) tha
t are designed to lift system performance, harnessing ISOL-8’s power expertise at an affordable price. In combination with our range of IsoLink shielded mains cables, PowerLine offers a flexible but powerful solution tailored for those who put performance and value first.
All versions feature an anodised 6mm thick CNC’d aluminum top plate. This forms an ideal mechanical foundation: non magnetic and non resonant. Input is by IEC connector with a Neutrik PowerCon an option on many variants. Each high quality power outlet has a hinged cover to IP54, protecting unused outlets from dirt, dust and little fingers.
Wiring is carefully selected silver plated copper with PTFE insulation throughout, providing excellent power transmission properties, reliably supplying your system for years to come.

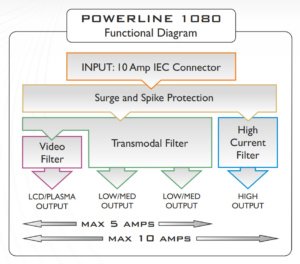

The PowerLine Chroma has the same AV specific filter complement as the 1080 but with six instead of four sockets. There is an extra outlet for the high power section plus an extra outlet for source components
| Number of available outlets: | 4 for PowerLine Ultra and 1080 5 for PowerLine Axis 6 for PowerLine and PowerLine Plus. 6 for PowerLine Ultra 6 way and Chroma |
|
| Type of outlets available: | 13A British chassis sockets European Shuko USA 15A |
|
| Standard Mains Inlet: | IEC fused socket (Cable not supplied) | |
| Dimensions: | 400 x 83 x 88mm (W x H x D) excluding connectors 505 x 83 x 88mm (W x H x D) excluding connectors Ultra 6 way & Chroma 540 x 100 x 110mm (W x H x D) packaged |
|
| Product Weight: | 1.7 Kg Powerline (6 way) 1.8 Kg PowerLine Plus (6 way) 1.9kg Axis (5 way) 2.3Kg Ultra & 1080 (4 way) 2.9Kg Ultra & Chroma (6 way) |
|
| Construction: | Aluminum top plate “titanium” anodise. Powder coated steel chassis | |
| Mains Voltage: | 230VAC version for 220-240VAC | |
| Maximum Current: | 10A maximum (IEC versions) |
